Soybean Oil Refinery Plant

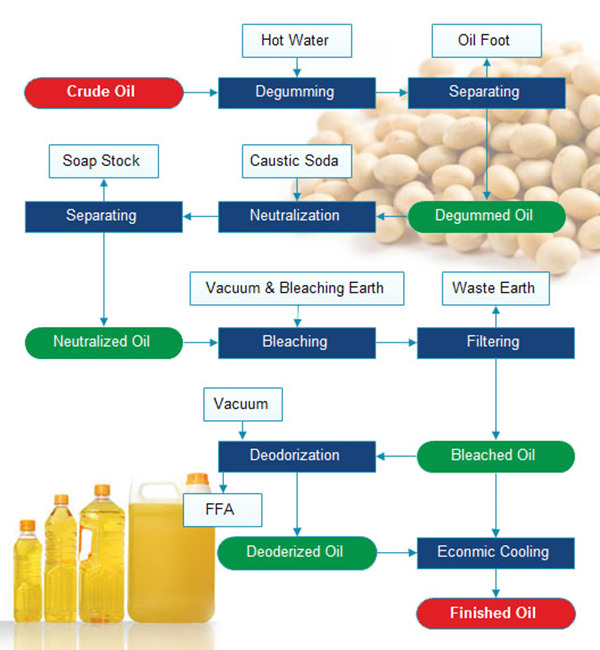

Soybean oil refining typically involves four core stages, each targeting specific impurities:

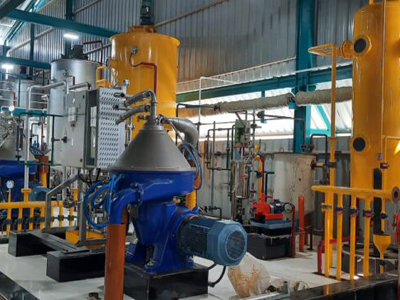

• Degumming: Removes phospholipids (gums) by adding water or dilute acid to the crude oil. Gums are insoluble in water and form a sludge that is separated via centrifugation or settling. This step prevents cloudiness in the oil and improves its stability during storage.

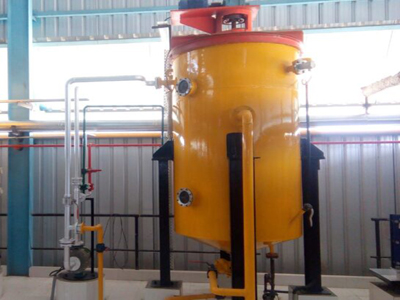

• Neutralization: Eliminates free fatty acids (FFAs) by adding a dilute alkali (e.g., sodium hydroxide). FFAs react with the alkali to form soapstock, which is separated from the oil. Reducing FFAs lowers acidity, improves flavor, and extends shelf life.

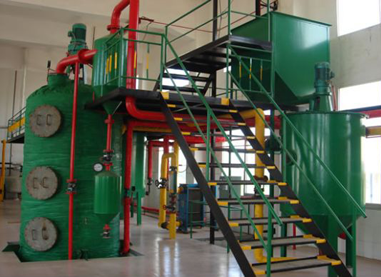

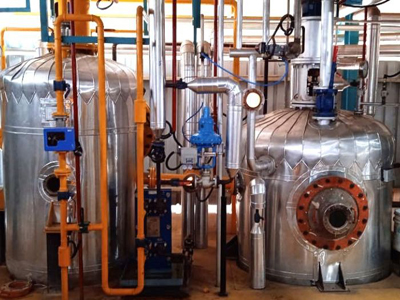

• Bleaching: Removes pigments (e.g., chlorophyll, carotenoids) and trace contaminants (pesticides, heavy metals) using adsorbents like activated clay, carbon, or silica. The oil is heated with the adsorbent, then filtered to remove the spent material, resulting in a lighter, clearer color.
• Deodorization: Removes volatile compounds (responsible for off-odors and flavors) by heating the oil under high vacuum (to reduce boiling points) and injecting steam. This step eliminates unpleasant smells (e.g., beany notes) and further stabilizes the oil.

Degumming tanks: Mix crude oil with water/acid and agitate to form gums.
Centrifuges or separators: Separate gum sludge from oil after degumming and soapstock after neutralization.
Neutralization reactors: Mix oil with alkali and control temperature/pH for FFA removal.
Bleaching vessels: Sealable tanks for mixing oil with adsorbents under controlled heat and vacuum.
Filter presses or leaf filters: Remove spent adsorbents from bleached oil.
Deodorization columns: Tall, vertical vessels where oil is heated under vacuum, and steam is injected to strip volatile compounds.
Heat exchangers: Recover heat from deodorized oil to preheat incoming oil, reducing energy use.
Storage tanks: Stainless steel tanks for crude oil, intermediate products, and refined oil, often with temperature control and nitrogen blanketing to prevent oxidation.

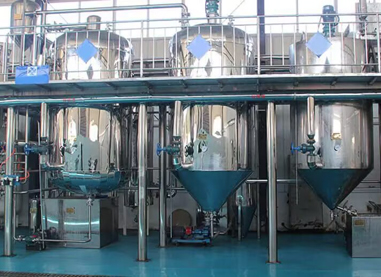

Small-scale refineries (processing 1–5 tons of crude oil/day): Use batch processing with manual or semi-automated equipment (e.g., small bleaching tanks, manual filters). They often skip deodorization or use simplified versions, producing oil for local markets.

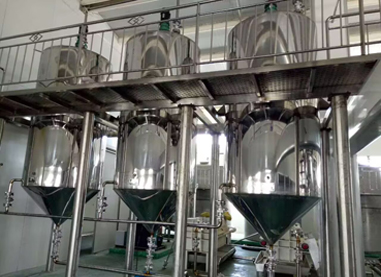

Medium-scale refineries (5–50 tons/day): Employ semi-continuous processing with automated controls for temperature and mixing. They include all four refining stages and serve regional food manufacturers.

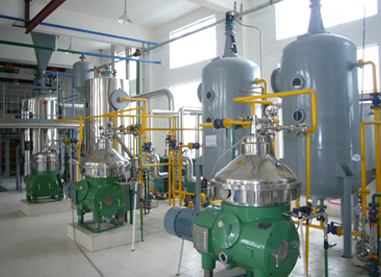

Large-scale refineries (50+ tons/day): Use fully continuous, computer-controlled lines with high-capacity centrifuges, multi-stage bleaching, and advanced deodorization systems. They produce oil for national/international markets and meet strict quality standards (e.g., Codex Alimentarius).

Refined soybean oil must adhere to global and regional standards, including:

• Free Fatty Acids (FFAs): <0.1–0.5% (varies by market; lower is better for stability).
• Peroxide Value: <10 meq/kg (indicates oxidation; lower values mean fresher oil).
• Color: <3.0 Red/30 Yellow on the Lovibond scale (pale yellow is preferred).
• Moisture and Impurities: <0.1% (to prevent spoilage).
• Contaminants: Undetectable levels of pesticides, heavy metals, or mycotoxins.

Enforcement involves in-plant testing (using titration for FFAs, colorimeters, and spectrometers) and third-party audits. Regulatory bodies like the FDA (U.S.), EFSA (EU), or FSSAI (India) conduct inspections to ensure compliance.

Energy use depends on scale and process intensity:

• Small-scale: 50–100 kWh per ton of crude oil, primarily for heating during bleaching and basic deodorization.
• Medium-scale: 100–200 kWh per ton, with additional energy for centrifugation and vacuum systems.
• Large-scale: 200–350 kWh per ton, driven by continuous deodorization (high heat/vacuum) and automated equipment.

Large refineries often use heat recovery systems (e.g., capturing heat from deodorized oil to preheat incoming oil) to reduce energy consumption by 20–30%. Some also integrate biomass boilers (using soybean hulls or meal waste) to lower reliance on fossil fuels.

Waste streams are managed to minimize environmental impact and recover value:

• Gums (from degumming): Rich in phospholipids, they are dried and sold as lecithin (used as emulsifiers in food, cosmetics, and animal feed).
• Soapstock (from neutralization): Processed into fatty acids (for soap making) or biodiesel feedstock.
• Spent bleaching clay: Can be regenerated for reuse or disposed of as inert waste (if non-toxic).
• Wastewater: Contains traces of oil and organic matter. It is treated via oil-water separators, biological filtration (aerobic digestion), and chemical treatment to meet discharge standards.
• Volatile compounds (from deodorization): Condensed into fatty acid distillates, used in industrial applications (e.g., lubricants, candles).

Oil oxidation: Occurs if refining temperatures are too high or exposure to air is excessive. Mitigated by using nitrogen blanketing in storage tanks and optimizing deodorization time/temperature.
Off-colors/flavors: Caused by incomplete bleaching or deodorization. Solved by adjusting adsorbent dosage in bleaching or increasing steam injection in deodorization.
Emulsions (in degumming/neutralization): Form when oil and water mix excessively, making separation difficult. Prevented by controlling temperature and agitation speed, or adding demulsifiers.
High energy costs: Reduced via heat recovery systems, efficient vacuum pumps, and optimizing process timelines (e.g., shorter deodorization cycles with better steam distribution).

Yes, most refineries can process other oils (e.g., canola, sunflower, palm) with minor modifications:

• Adjusting process parameters: Different oils have varying FFA levels, gum content, and thermal stability. For example, palm oil requires higher bleaching temperatures than soybean oil.
• Equipment tweaks: Some oils (e.g., high-acid oils like rice bran) may need additional neutralization steps or specialized centrifuges.
• Cleaning protocols: Thoroughly cleaning tanks and lines between oil types to prevent cross-contamination of flavors or pigments.

Multi-oil refineries are common in regions with diverse vegetable oil production, as they maximize facility utilization.

Costs vary significantly by scale:

• Small-scale (1–5 tons/day): $50,000–$200,000 for equipment (batch reactors, basic centrifuges). Annual operating costs (labor, energy, chemicals) are $20,000–$100,000.
• Medium-scale (5–50 tons/day): $200,000–$1 million for semi-continuous equipment and automation. Operating costs: $100,000–$500,000/year.
• Large-scale (50+ tons/day): $1 million–$10 million+, including continuous lines, advanced testing labs, and waste treatment systems. Operating costs: $500,000–$5 million/year.

Key cost drivers include equipment quality (stainless steel vs. mild steel), automation level (manual vs. PLC-controlled), and compliance with environmental/regulatory standards.
